PM series

HIWIN Linear Guide

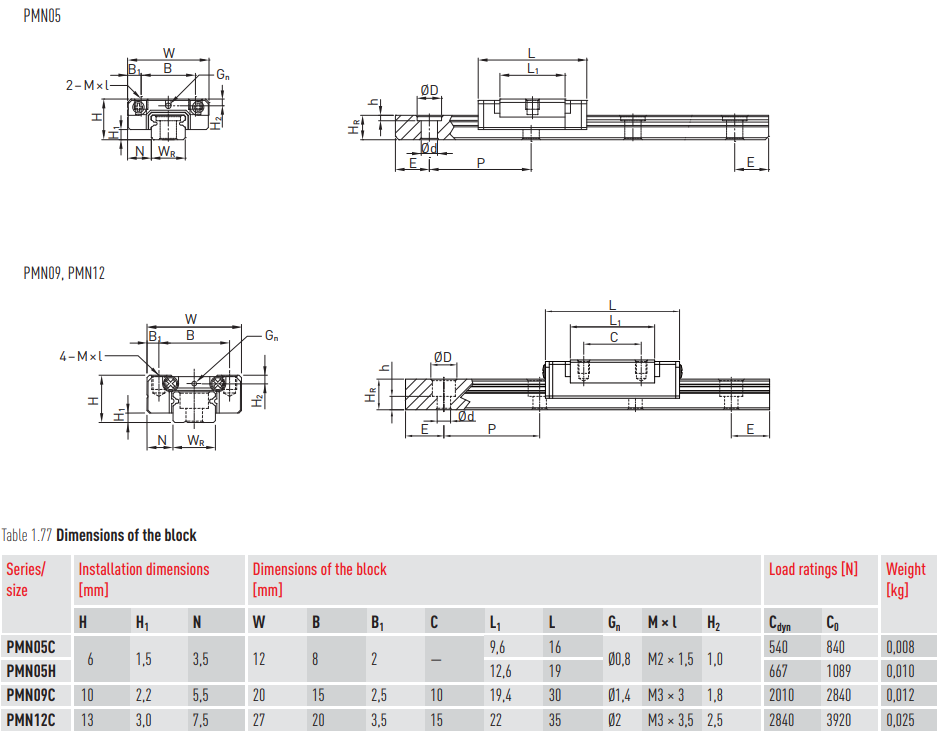

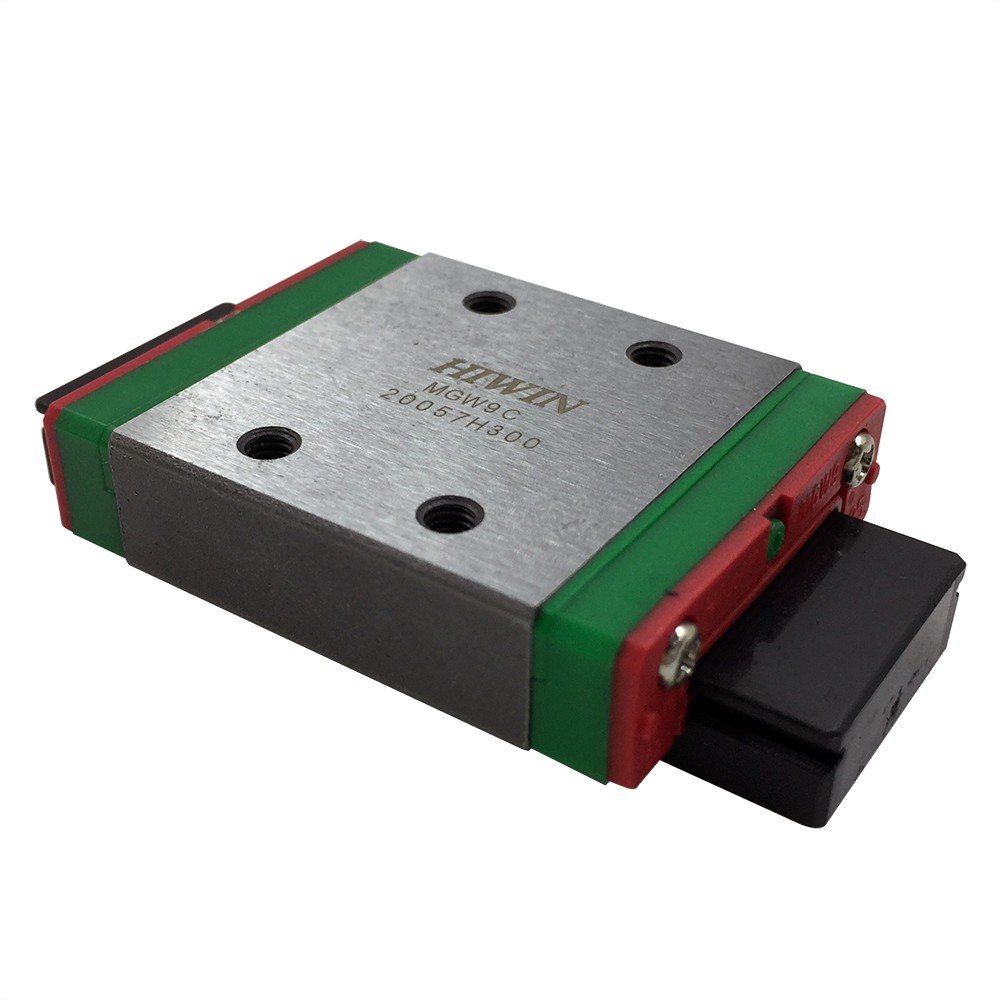

PMN Series
The HIWIN linear guideway of the PMN series is based on the proven MGN series. Thanks to the optimised ball return in the plastic duct, the synchronous performance and quiet running are improved and the weight is reduced by around 20 %. The Gothic race profile absorbs loads in all directions and is particularly rigid and precise. Given its compact and lightweight design, it is particularly suited to use in small devices.

○ 2-row recirculation ball bearing guide
○ Gothic arch contact design
○ Stainless steel block and balls
○ Rails made from standard or stainless steel
○ Compact and lightweight design
○ Balls are secured in the block by retaining wire
○ End seal
○ Interchangeable models are available in defined accuracy classes
○ Optimized ball deflection
○ Improved synchronous performance
○ Reduced weight

Applications of the PM series
The PM series was developed for use in restricted spaces, e.g. in the semiconductor industry, PCB population, medical technology, robot applications, measurement de vices, office automation and other sectors needing miniature guides
