MG series

HIWIN Linear Guide

MG series

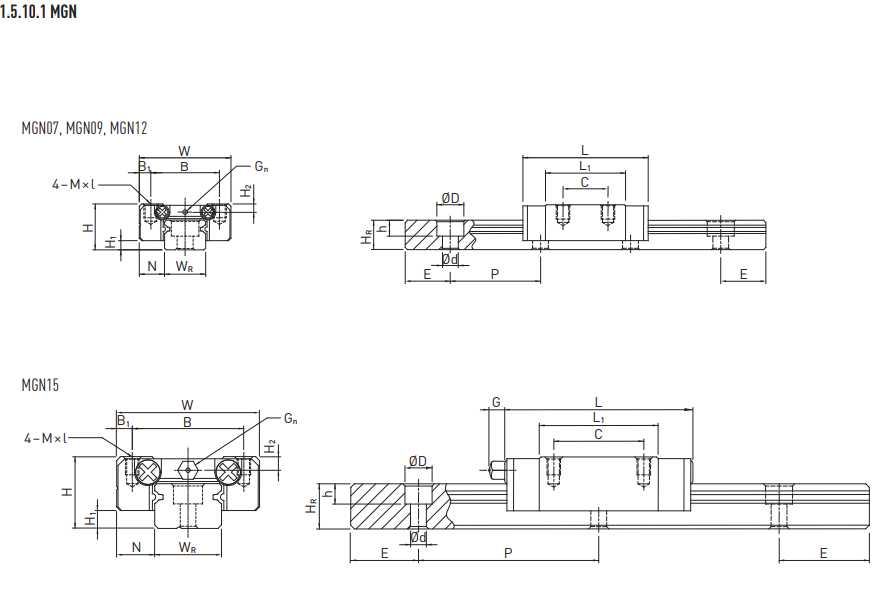

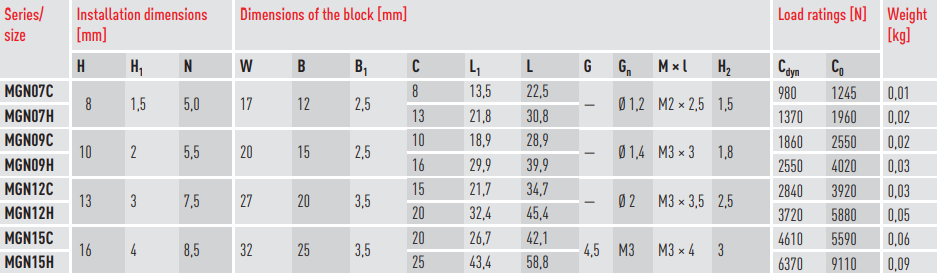

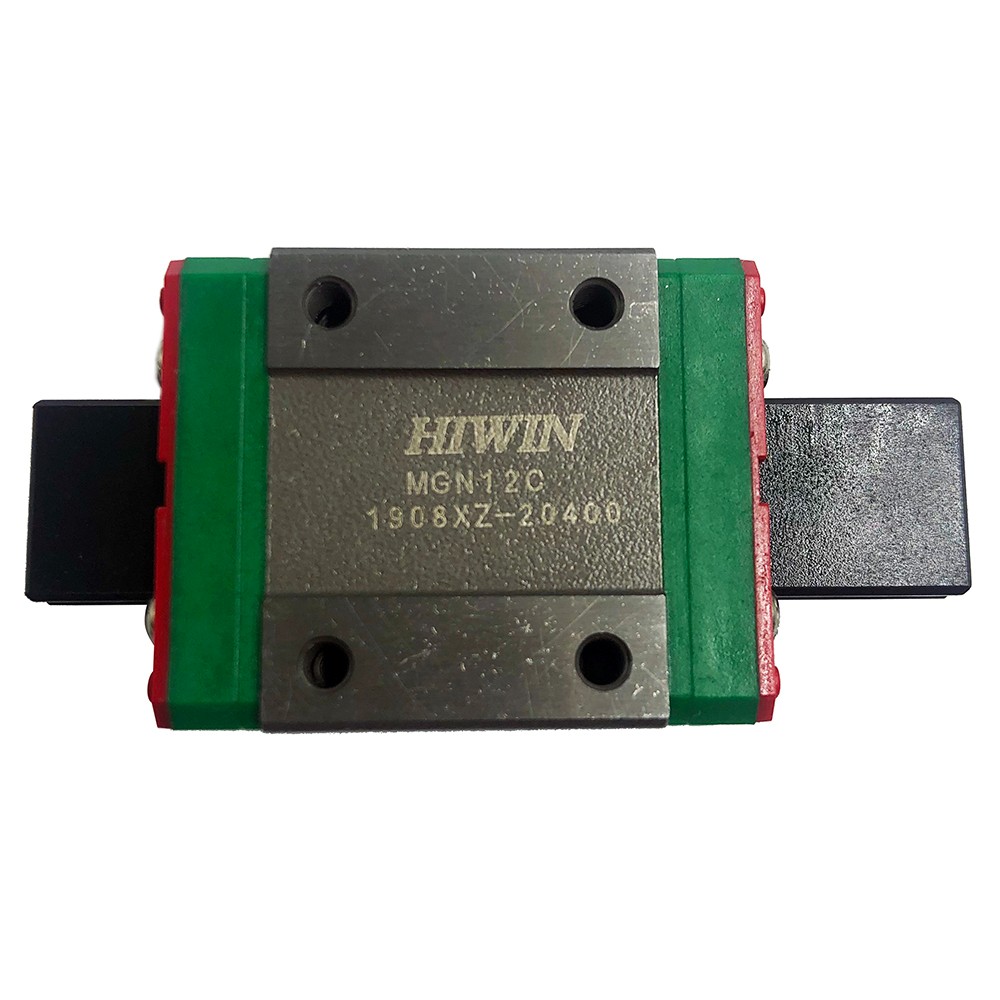

Structure of the MGN series
○ 2-row recirculation ball bearing guide
○ Gothic arch contact design
○ Stainless steel block
○ Rails made from standard or stainless steel
○ Compact and lightweight design
○ Steel balls are secured in the block by retaining wire
○ Grease nipple available for MGN15
○ End seal
○ Bottom seal (optional for sizes 12 and 15)
○ Interchangeable models are available in defined accuracy classes

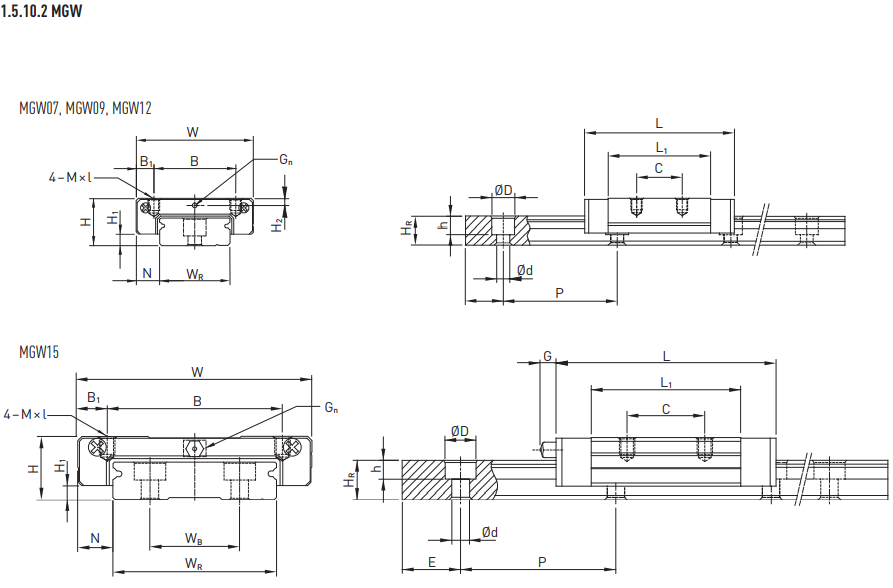

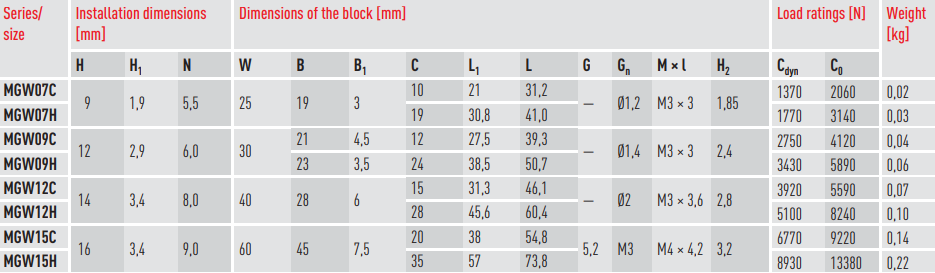

Structure of the MGW series
○ 2-row recirculation ball bearing guide
○ Gothic arch contact design
○ Stainless steel block
○ Rails made from standard or stainless steel
○ Compact and lightweight design
○ Steel balls are secured in the block by retaining wire
○ Grease nipple available for MGW15
○ End seal
○ Bottom seal (optional for sizes 12 and 15)
○ Interchangeable models are available in defined accuracy classes

Applications of the MG series
The MGN and MGW series can be used in many sectors, e.g. in the semiconductor industry, PCB population, medical technology, robot applications, measurement devices, office automation and other sectors needing miniature guides.
