WE series

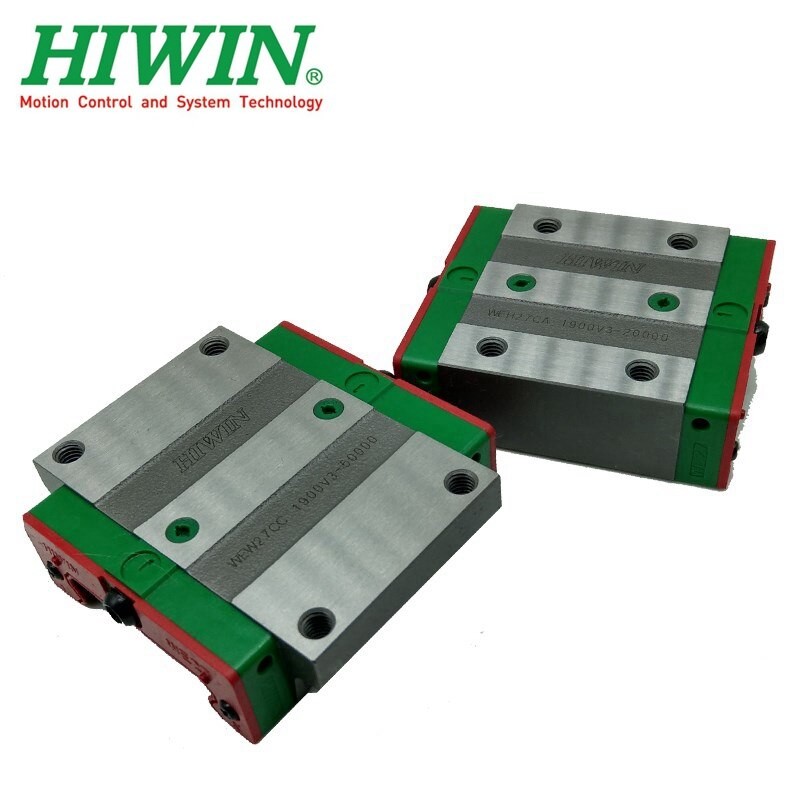

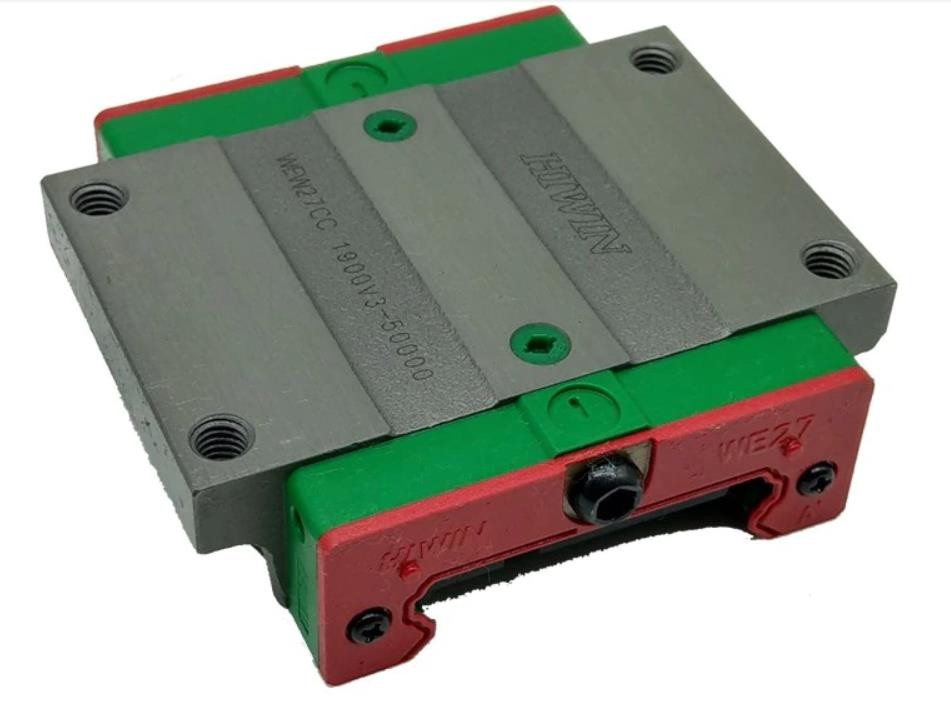

HIWIN Linear Guide

WE series

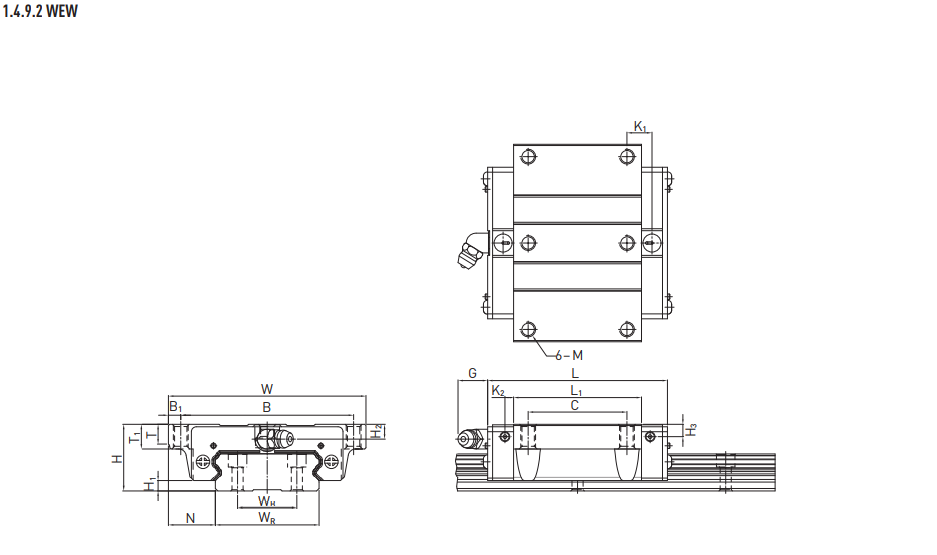

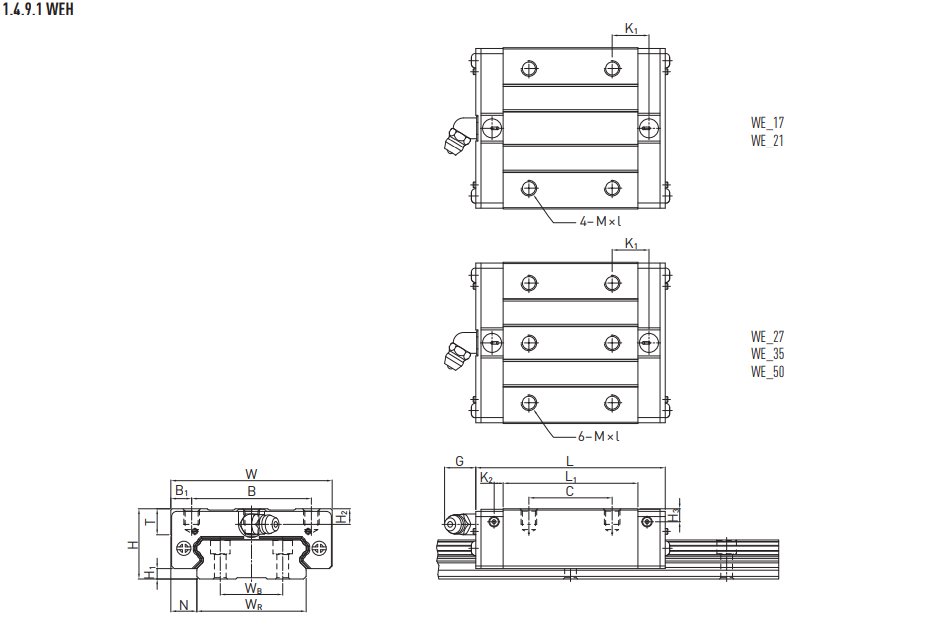

Structure of the WE series
○ 4-row recirculation ball bearing guide
○ 45° contact angle
○ Ball retainers prevent the balls from falling out when the block is removed
○ Low installation height
○ Wide linear guideway for high torque loading capacity
○ Large mounting surface on block

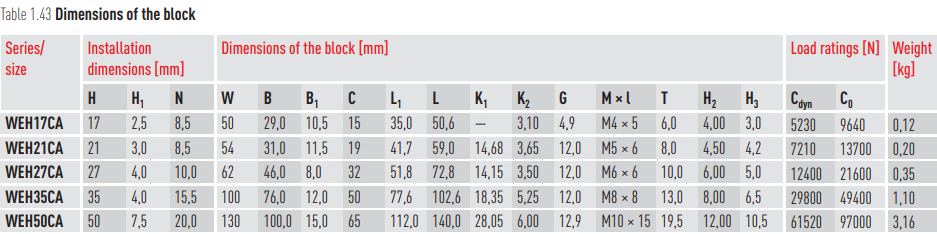

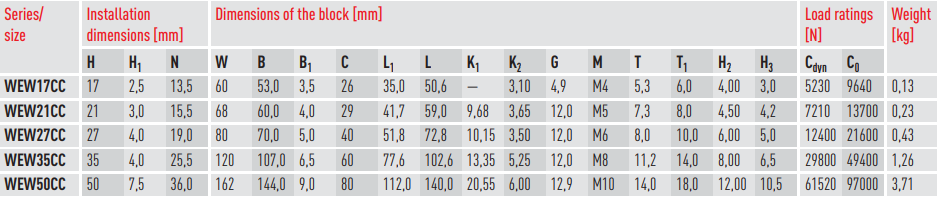

Advantages
○ Compact and low-cost design thanks to high torque loading capacity
○ High efficiency thanks to low friction losses
○ The block’s large mounting surface supports the transfer of higher torques
○ The 45° arrangement of ball tracks permits high loading from all directions
○ Optimized geometry and high loading capacity thanks to FEM analysis of rail and block
