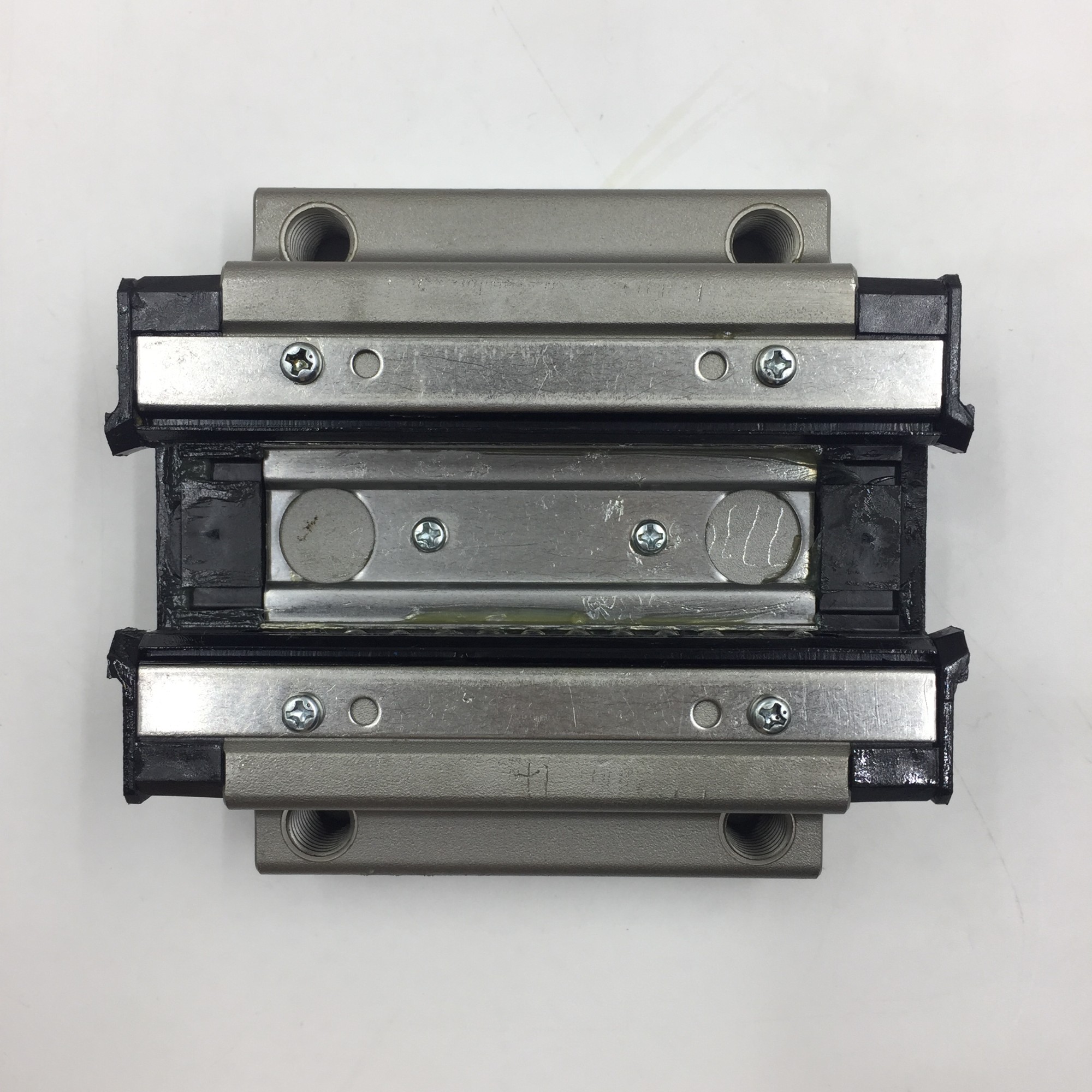

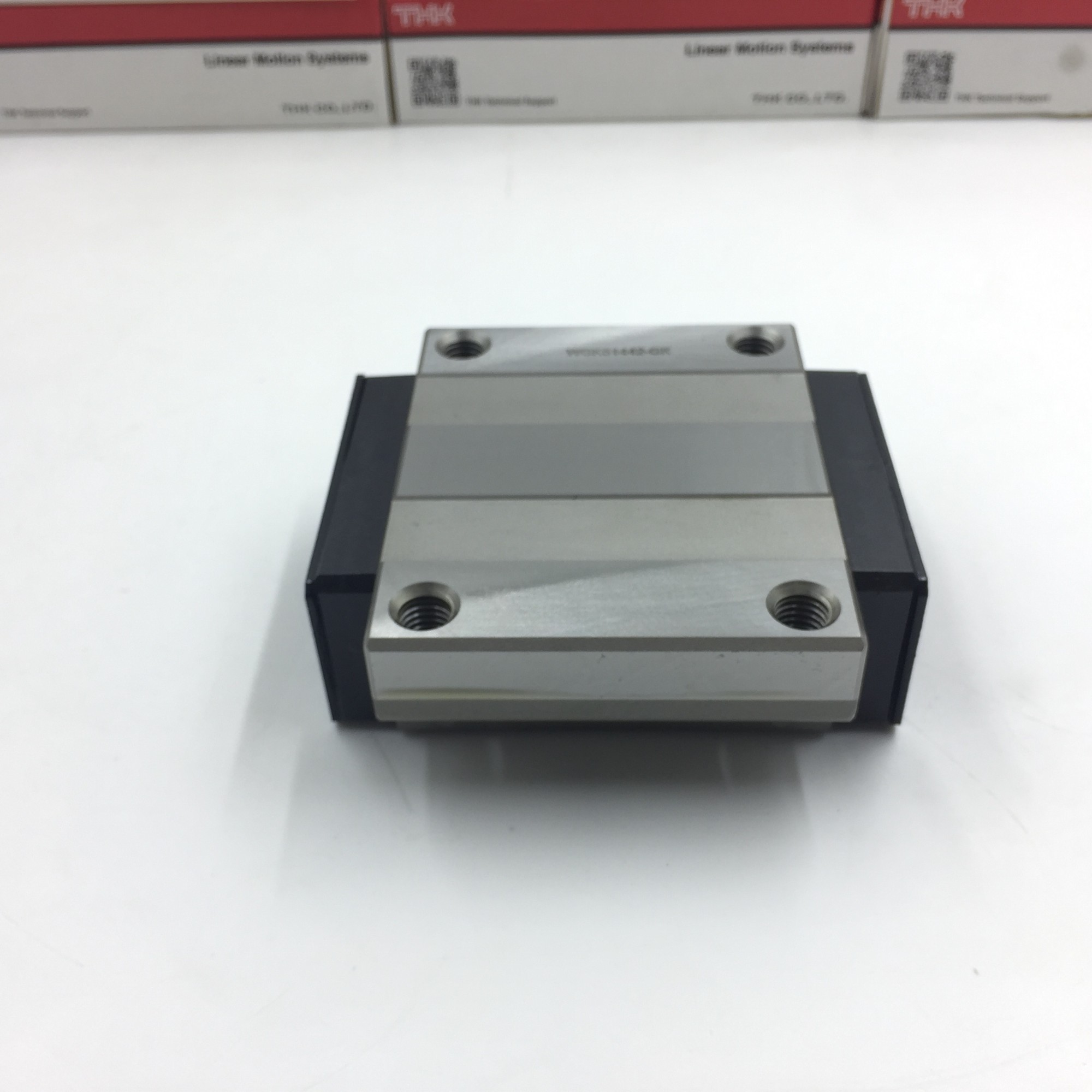

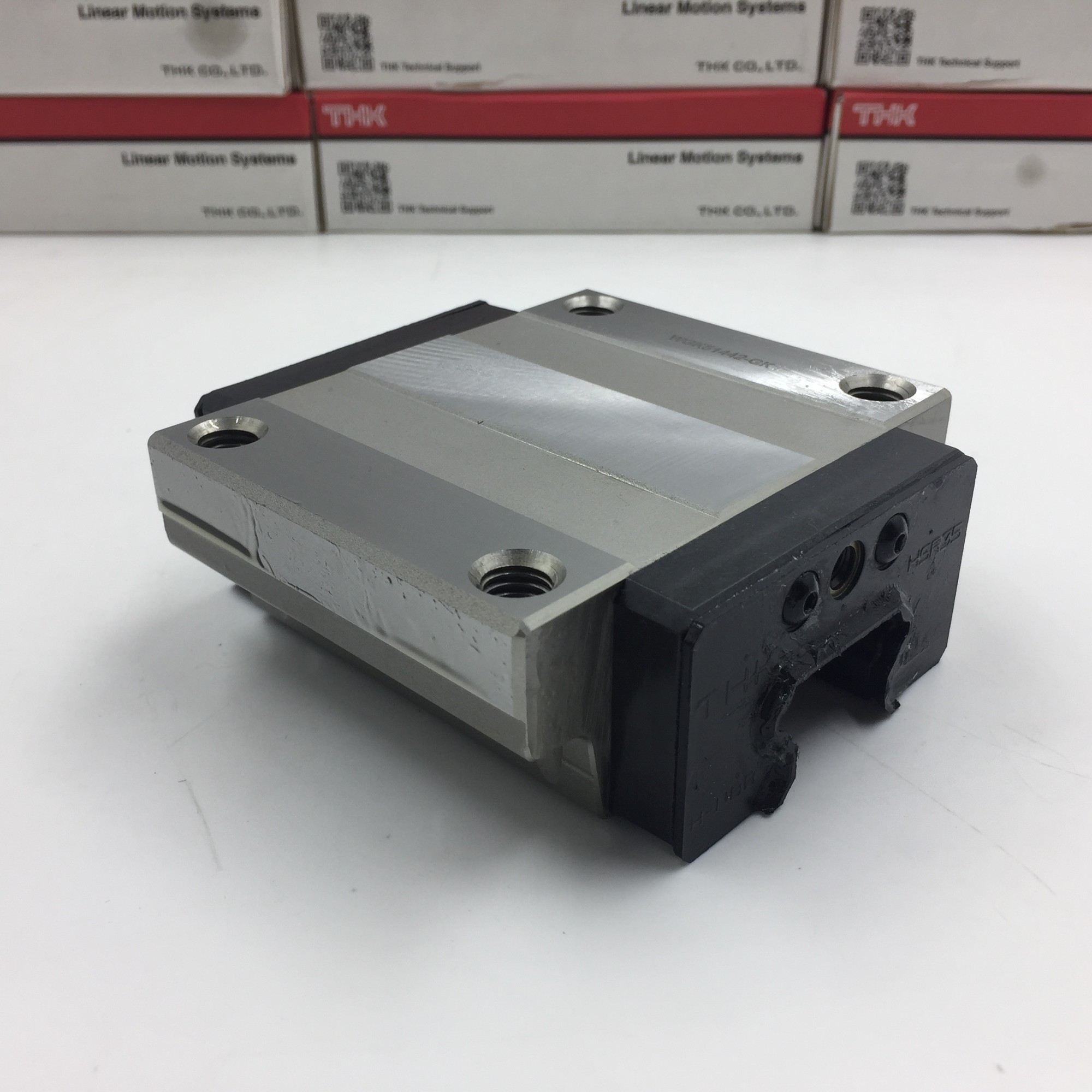

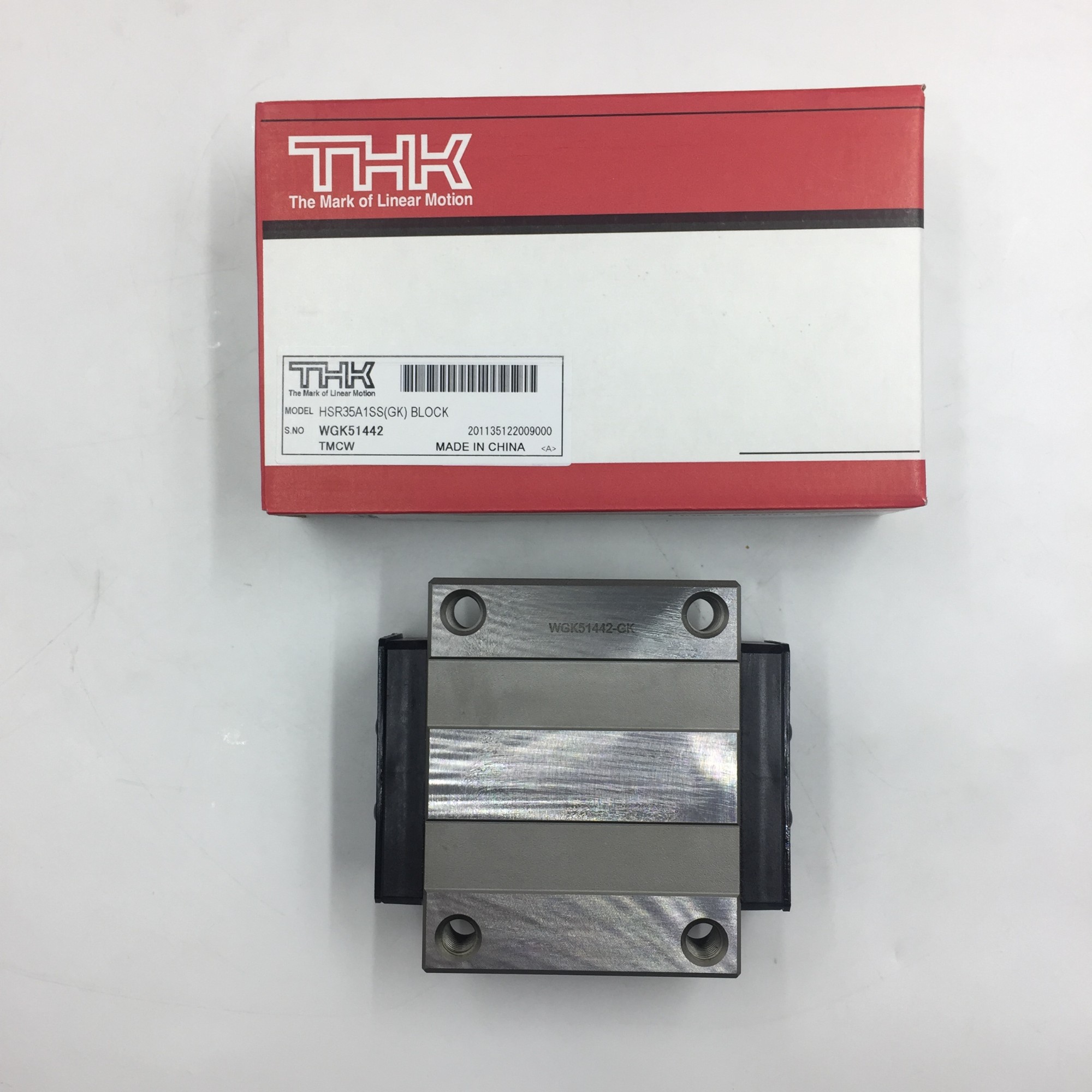

HSR-B, HSR-BM, HSR-LB and HSR-LBM LM Guide

The flange of its LM block has tapped holes.

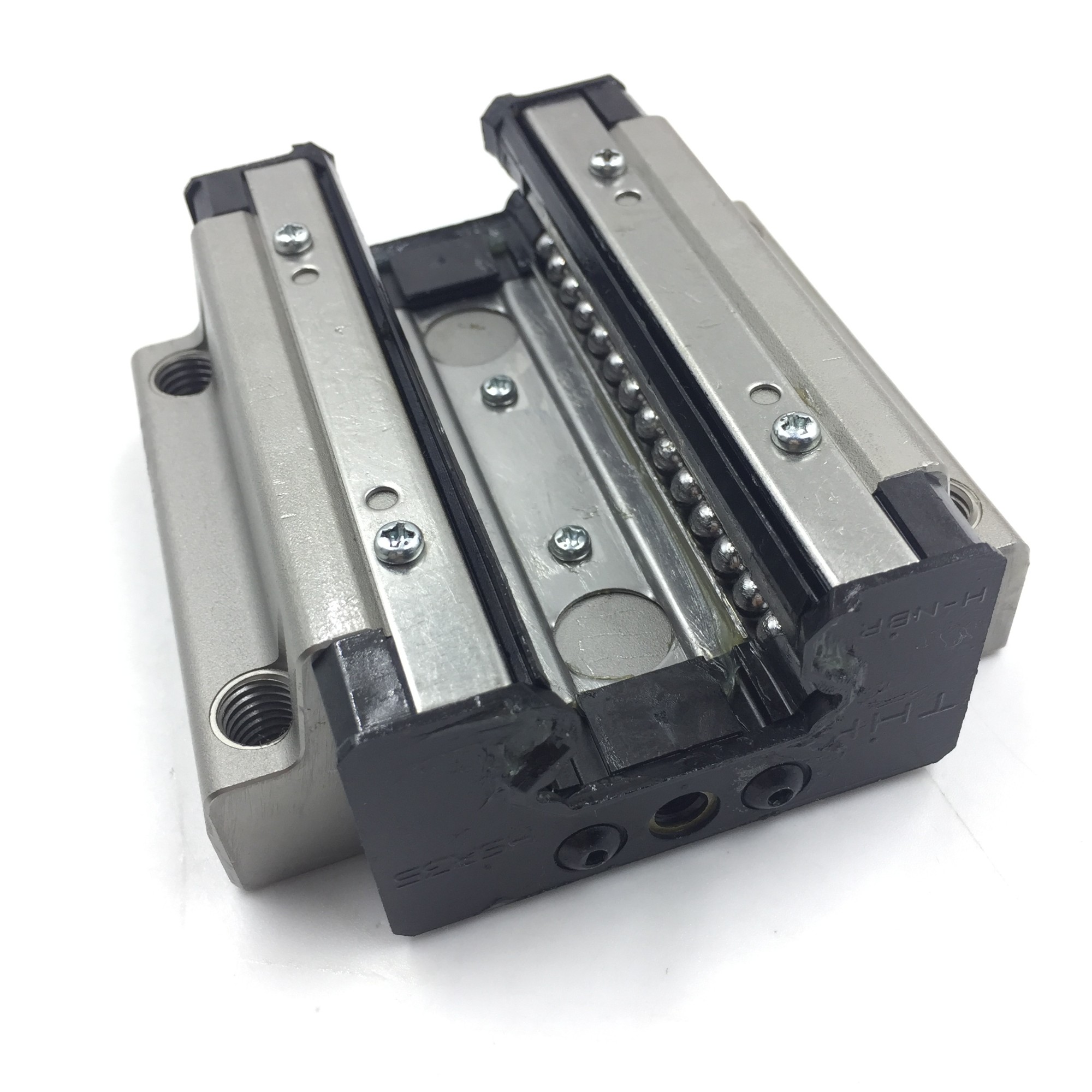

A global standard size LM Guide in which each row of balls is placed at a contact angle of 45° so that the rated loads applied to the LM block are uniform in the four directions (radial, reverse radial and lateral directions), enabling the LM Guide to be used in all orientations.

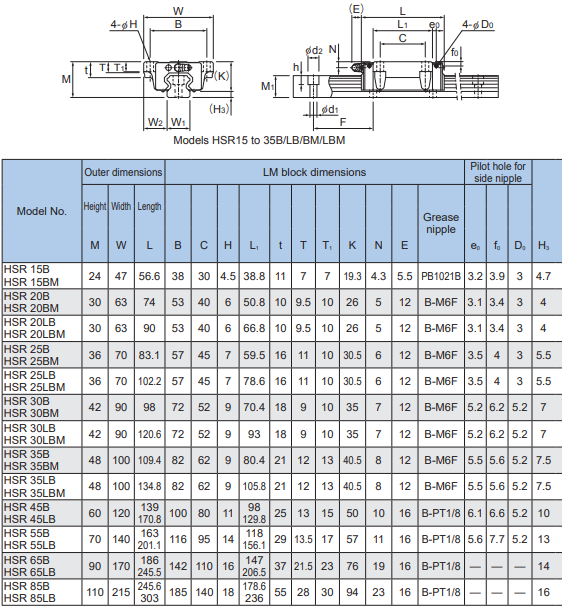

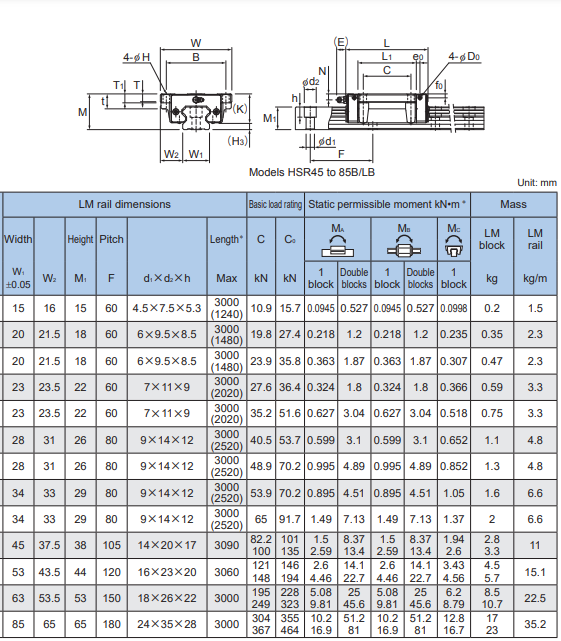

Models:HSR-B/HSR-BM

The flange of the LM block has through holes. Used in places where the table cannot have through holes for mounting bolts.

HSR-LB
The LM block has the same cross-sectional shape as model HSR-B, but has a longer overall LM block length (L) and a greater rated load.
