HR, HR-T, HR-M and HR-TM

Model HR: Separate (Four-way equal load)

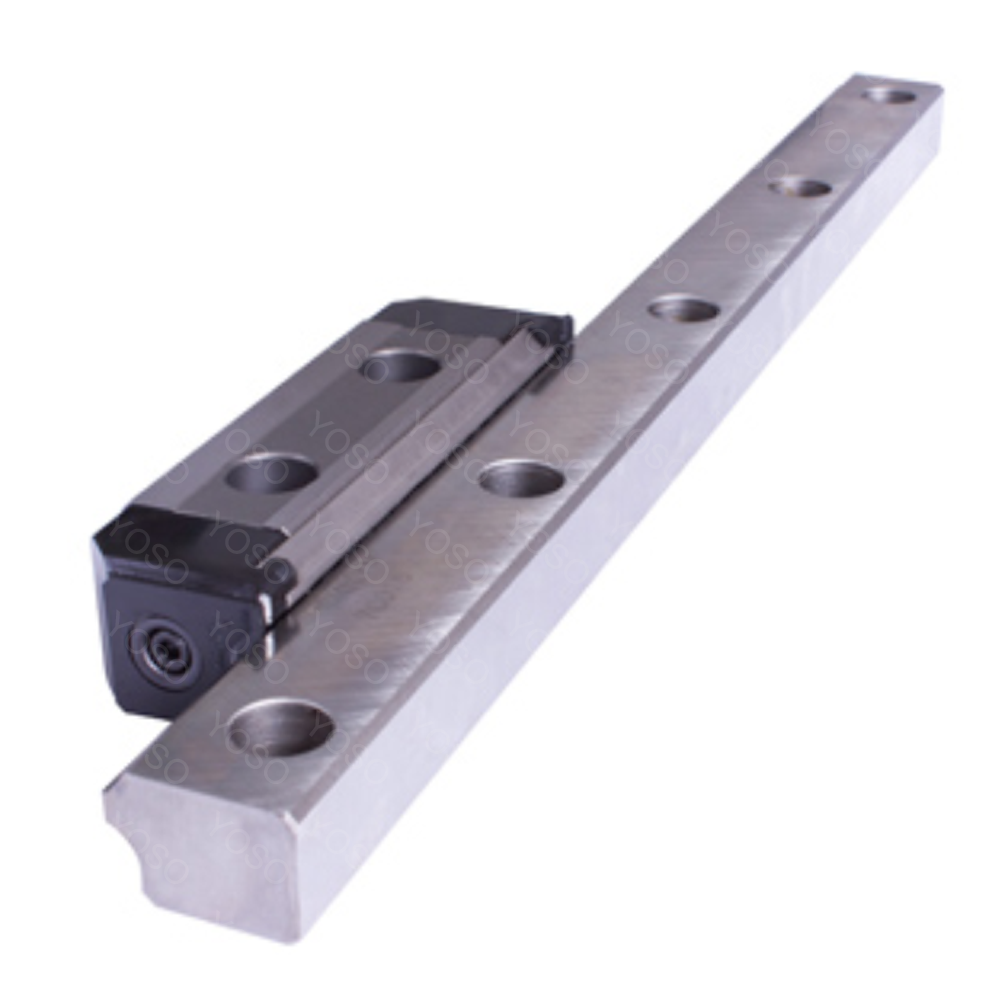

An LM Guide that is capable of receiving the identical load in the 4 directions with parallel installation of 2 rails, has a low sectional height and allows the clearance to be adjusted.

HR

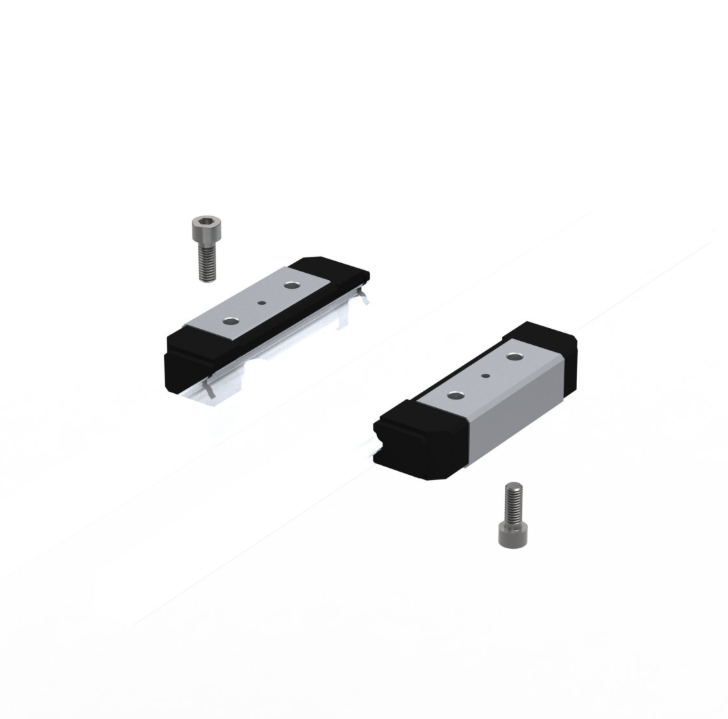

The LM blocks can be mounted from the top and the bottom.

HR-T
Has the same cross-sectional shape as model HR, but has a greater overall LM block length (L) and a higher load rating
